Brands |
N/A NorLAB |
Inlet Fitting |
N/A C-10 |
Cylinder |
N/A 34/58/103/116 liter |
Demand Pressure |
N/A <3 in H2O |
Maximum Inlet Pressure1 | N/A 3000 psig |
Weight2 | N/A 0.6 lb1.2 lb |
Optional Items |
N/A CGA Connections Porting Configuration Private Label |
Package Type |
N/A Each |
Units Per Package |
N/A 1 |
Body Options |
N/A 303 Stainless Steel 6061-T6 Aluminum, Clear Anodize SAE 360 Brass, Nickel Plated |
Bonnet |
N/A 6061-T6 Aluminum, Clear Anodize |
Valve Seat |
N/A Buna-N Ethylene Propylene Diene Monomer (EPDM) Fluorocarbon (FKM) Polytetrafluoroethylene (PTFE) (Standard) |
O-Ring Seal Options3 | N/A Ethylene Propylene Diene Monomer (EPDM) Fluorocarbon (FKM) (Standard) |
Diaphargm Options |
N/A Buna-N (Standard) Fluorocarbon (FKM) |
Inlet Gauge Options |
N/A Brass Socket / Stainless Steel Case (Standard) Stainless Steel Socket / Stainless Steel Case |
Integrated Inlet Porting Options |
N/A 1/4 FNPT (Standard) 1/8 FNPT |
Optional Inlet Adapter Connections |
N/A C-10 (5/8-18 UNF) (Standard) CGA 180 CGA 330/660 CGA 350 CGA 580/590 CGA 600 |
Outlet Porting Options |
N/A 1/4” FNPT 1/4” hose barb 1/8” FNPT 1/8” hose barb 3/16” hose barb (Standard) |
N/A
|
N/A

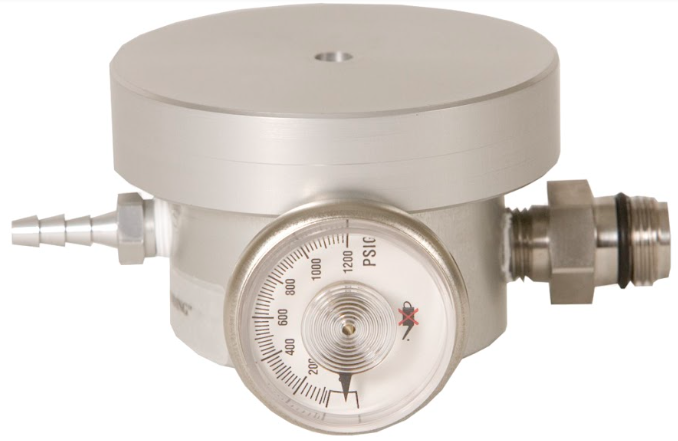

The compact and economical Premier 4903 regulator is available with a variety of body, diaphragm, seat, and sealing materials to suit a variety of calibration gas requirements. Premier 4903 Series regulators permit reduced testing time, with their ability to begin flow of gas at <3” H20 vacuum. |
- 1 With appropriate inlet connection
-
2 Stainless Steel Body, Gauge, C10 connection & hose barb
Aluminum Body, Gauge, C10 connection & hose barb - 3 Numerous other compounds available
