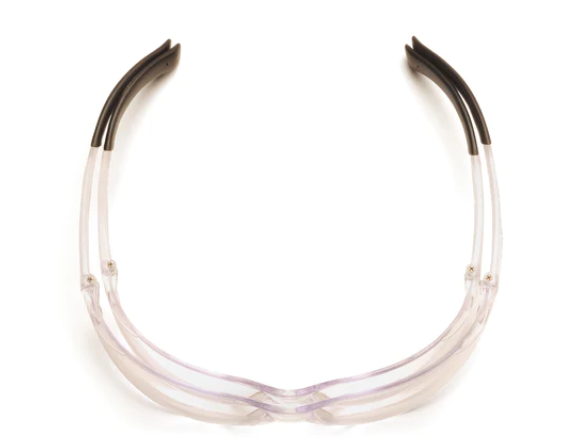

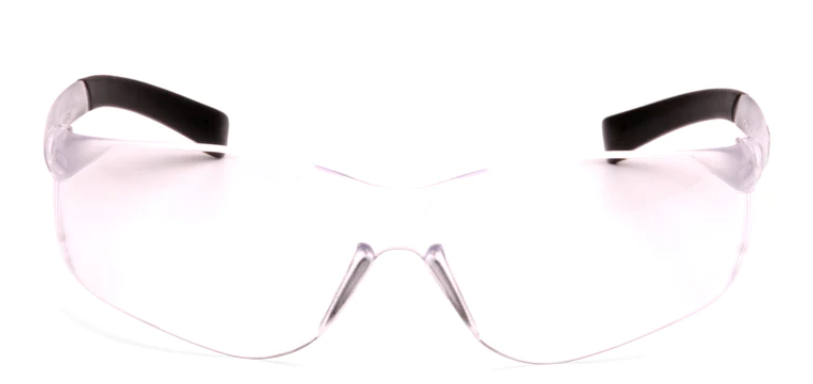

Mini Ztek® has all the great features of Ztek in a design better suited for slimmer facial sizes.
Integrated nosepiece.
Soft, non-slip rubber temple tips provide non-binding fit.
Custom imprinting available.
Unit of Measure

Brands

 N/A Mini Ztek® Pyramex®

Lens Color

 N/A Clear

Lens Treatment

 N/A H2X Anti-fog

Weight

 N/A 20 g

Pupillary Distance (PD)

 N/A 50 mm

Bridge

 N/A 12 mm

Lens Base

 N/A 10 Curve

Diagonal Lens Size

 N/A 73.8 mm

Vertical Lens Size

 N/A 41 mm

Lens Thickness

 N/A 2.3 mm

Overall Length (Lens to Tip)

 N/A 144 mm

Overall Width (Hinge to Hinge)

 N/A 128 mm

Lens Marking

 N/A P Z87 H + U6

Standards and Certifications

 N/A American National Standards Institute (ANSI)/ISEA Z87.1+ High Impact CAN/Canadian Standards Association (CSA) Z94.3 European Conformity (CE) UK Conformity Assessed (UKCA)

Temple Marking

 N/A P Z87 H + / P c SEI Z94.3

Package Type

 N/A Box

Units Per Package

 N/A 12

Lens Material

 N/A Polycarbonate

Temples Material

 N/A Polycarbonate

Temple Tips Material

 N/A Polyvinyl Chloride (PVC)

Hinge Material

 N/A Polycarbonate

Screw Material

 N/A Stainless Steel

Nosepiece Material

 N/A Polycarbonate

Side Shield Material

 N/A Polycarbonate

Lens Marking Symbols

 N/A
  • P: Manufacturer’s mark
  • Z87: ANSI standard for eye and face protection devices
  • +: High impact
  • S: Special purpose
  • H: Small head size
UV Filter Transmittance
  • U6: .01% max effective far UV • .1% max near UV
Visible Light Filters
  • L1.7: 55% Max. Visible Light
  • L2.5: 29% max visible light

Temple Marking Symbols

 N/A
  • P: Manufacturer’s mark
  • Z87: ANSI standard for eye and face protection devices
  • +: High impact
  • H: Small head size
  • c SEI Z94.3: CAN/CSA standard for eye and face protection devices

Warning

 N/A WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov for more information.

Note

 N/A Mini Ztek is about 6% smaller than the Ztek.

S2514S is designed for peripheral personnel and visitors who are NOT exposed to direct IR radiation.

S25ARCS is great for use under the welding helmet - allowing welder to see work clearly without suffering “welder’s flash burn” from surrounding welders.
