Request Information

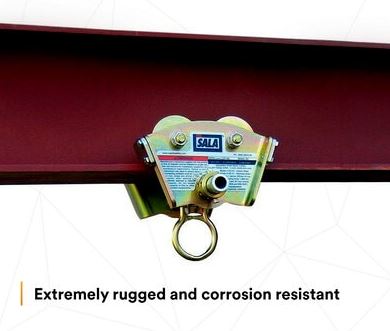

  • Installs onto 3 in. to 8 in. wide I-beam flange (7.6 to 20.3 cm) up to 11/16" thick (1.7cm)
  • Complete hands-free horizontal mobility
  • Ideal for use with self retracting lifeline
  • Easy to use dual adjustment dials
Unit of Measure

Brands

 N/A DBI-SALA®

Anchor Install Type

 N/A Permanent & Reusable

Attachment Type

 N/A Clamp

Connected Safety ID Equipped

 N/A Yes

Fits Ibeam Flange Width

 N/A 3 to 8 in7.6 to 20.3 cm76 to 203 mm

For Use With

 N/A 3M™ DBI-SALA® SecuraSpan™ I-Beam System

Install Type

 N/A Reusable

Material

 N/A Zinc Plated Steel

Product Color

 N/A Yellow Zinc

Product Type

 N/A Beam Trolley

Recommended Industry

 N/A Construction General Industrial Mining Oil & Gas Transportation Utilities Wind Energy

Specifications Met

 N/A Occupational Safety and Health Administration (OSHA) 1910.140 Occupational Safety and Health Administration (OSHA) 1926.502

Weight

 N/A 14 lb

Weight Capacity (American National Standards Institute (ANSI))

 N/A 310 lb141 kg

Weight Capacity (Occupational Safety and Health Administration (OSHA))

 N/A 420 lb190 kg

Package Type

 N/A Each

Units Per Package

 N/A 1

N/A Fast and safe tie-off point for your personal fall protection system.

High strength and durability to stand up to the toughest environments

Anchorages are sold by what they connect to (general/all purpose, steel, concrete, roof or specialty), whether they are fixed or mobile, and whether they are permanent or portable.

They all must provide a secure point of attachment for a complete personal fall arrest system, and must be capable of supporting a load of 5,000 lbs. (22 kN) or of meeting OSHA’s criteria of a 2 to 1 safety factor.

Elevating safety to new heights

With its history of innovation and excellence, 3M™ Personal Safety Division offers its customers the quality products, expertise and service of the trusted 3M™ DBI-SALA® and 3M™ Protecta® Fall Protection brands. With 3M™ Fall Protection equipment, you can help elevate your employees’ safety and comfort to new heights.
