Attaches Rollgliss™ R550 Rescue and Descent Device to ladder rungs

Fast and simple detent-style mounting of R550 to bracket

Built-in adjustment handle for various rung spacing
Unit of Measure

Brands

 N/A 3M™ DBI-SALA® Rollgliss™

Carabiner/Hook Material

 N/A Aluminum Zinc Plated Steel

CoWorker Controlled Ascent

 N/A No Yes

CoWorker Controlled Descent

 N/A No Yes

Connected Safety ID Equipped

 N/A No Yes

Descent Type

 N/A Vertical

Housing Material

 N/A Aluminum

Lifeline Material

 N/A Braided Polyester Cover with Nylon Filament Core Kernmantle

Line Length

 N/A 25 ft50 ft75 ft100 ft150 ft175 ft200 ft250 ft275 ft300 ft325 ft350 ft361 ft400 ft450 ft500 ft550 ft600 ft700 ft1000 ft1200 ft1600 ft8 m15 m23 m30 m46 m53 m61 m76 m84 m91 m99 m107 m110 m122 m137 m152 m168 m183 m213 m305 m366 m488 m

Maximum Number of Users

 N/A 2

Color

 N/A Silver Yellow

Product Series

 N/A Rollgliss™ Rollgliss™ R550

Product Type

 N/A Rescue and Descent Device Rescue and Escape Device Ladder Bracket

Recommended Industry

 N/A Construction General Industrial Mining Oil & Gas Transportation Utilities Wind Energy

Specifications Met

 N/A American National Standards Institute (ANSI)/American Society of Safety Professionals (ASSP) Z359.9-2021 Canadian Standards Association (CSA) Z259.2.3-12

User Controlled Ascent

 N/A No

User Controlled Descent

 N/A No Yes

Overall Length

 N/A 25 ft50 ft75 ft100 ft150 ft175 ft200 ft250 ft275 ft300 ft325 ft350 ft361 ft400 ft450 ft500 ft550 ft600 ft700 ft1000 ft1200 ft1600 ft8 m15 m23 m30 m46 m53 m61 m76 m84 m91 m99 m107 m110 m122 m137 m152 m168 m183 m213 m305 m366 m488 m

Weight Capacity for 1 Person

 N/A 130 to 310 lb59 to 141 kg

Weight Capacity for 2 Person

 N/A 130 to 620 lb59 to 282 kg

Weight Capacity

 N/A 620 lb282 kg

Net Weight

 N/A 2.5 lb10.9 lb11 lb12 lb12.8 lb13.9 lb15.8 lb16.6 lb16.7 lb17.7 lb19.6 lb20.4 lb20.5 lb21.5 lb22.4 lb25.8 lb27.7 lb28 lb29.6 lb31.5 lb33.4 lb35.3 lb37.2 lb39.1 lb41 lb42.9 lb44.8 lb46.2 lb46.7 lb48.6 lb50.5 lb56.2 lb58.1 lb63.8 lb1.1 kg1.94 kg4.9 kg5.4 kg5.78 kg5.8 kg6.2 kg7.1 kg7.51 kg7.6 kg8 kg8.9 kg9.23 kg9.3 kg9.7 kg10.2 kg10.8 kg11.7 kg12.5 kg12.7 kg13.4 kg14.3 kg15.1 kg16 kg16.8 kg17.7 kg19.5 kg20.3 kg20.95 kg21.2 kg22 kg22.9 kg25.5 kg32.4 kg37.2 kg

Weight

 N/A 10.9 lb11 lb12 lb12.8 lb12.9 lb13.9 lb15.8 lb16.6 lb16.7 lb17.7 lb19.6 lb2.5 lb20.4 lb20.5 lb21.5 lb22.4 lb23.9 lb25.8 lb27.7 lb28 lb29.6 lb31.5 lb33.4 lb35.3 lb37.2 lb39.1 lb42.9 lb44.8 lb46.2 lb46.7 lb48.6 lb50.5 lb56.2 lb71.4 lb

Package Type

 N/A Each

Units Per Package

 N/A 1

Highlights

 N/A
  • Detent pin installs ladder to bracket
  • Powder-coated steel construction for durability and strength
  • Recommended for use in transportation, utilities, and general industrial applications
  • 2.5 lb. (1.1 kg) bracket with 310 lb. (140.6 kg) weight capacity
  • Rescue wheel available on some models. Constructed of Supertough® nylon, this rescue wheel is ergonomically designed to provide control and reliability
  • Fully sealed humidity case included on certain models or available for purchase as an add on, provides 10 year minimum storage life. External humidity indicator allows user to inspect the seal without opening case

Additional Information

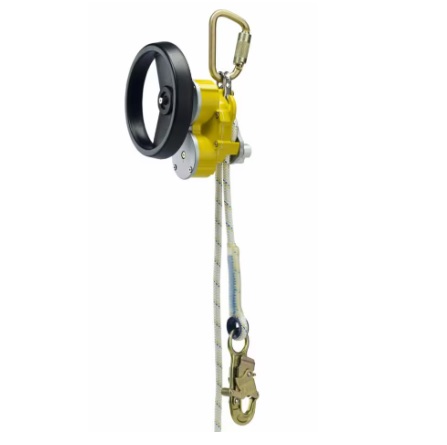

 N/A The 3M™ DBI-SALA® Rollgliss™ R550 Rescue and Descent Device offers the choice of controlled descent rescue, evacuation or the versatility of assisted rescue with lifting capabilities. This state of the art, fully automatic controlled descent device can be used for rescue and evacuation from heights up to 1,640 ft (500 m) for one user 310 lbs (141 kg) or 575 ft (175 m) for two users totaling 620 lbs (282 kg). It features 3/8 in (9.5 mm) super static kernmantle rope, and is configured with connecting hardware at each end of the lifeline to operate in both directions. During assisted rescue scenarios, a fallen worker can be attached to the R550 device, raised to a point that allows their fall arrest device to be removed, then lowered to the ground safely.

Remember, during an emergency every second counts! You can count on and trust the 3M™ DBI SALA® Rollgliss™ Systems, in use all over the world; Wind Turbine Construction & Maintenance, Utility Pole/Tower Construction & Maintenance, Fire & Emergency Rescue Services, Commercial Construction Sites, Industry and MRO Facilities, Government & Military Operations, and more! More rescue options: This important rescue tool is an integral piece of the emergency kit, used to mount the versatile R550 Rescue and Escape Device to a secured industrial ladder. Safety technicians and fellow workers may need extra help during evacuation operations, and this bracket provides more options for success. Adjustable function: Easy-to-use safety equipment is designed with a built-in adjustment handle that conforms to the spaces between rungs, making it more efficient and easy to use. A simple detent-style mounting apparatus integrates seamlessly with the descent device. Durable construction: With a corrosion-resistant construction, this safety gear bracket ensures high performance under any weather and job site conditions. Made with powder-coated steel, the escape ladder bracket is durable, strong, and dependable when lives are on the line.
