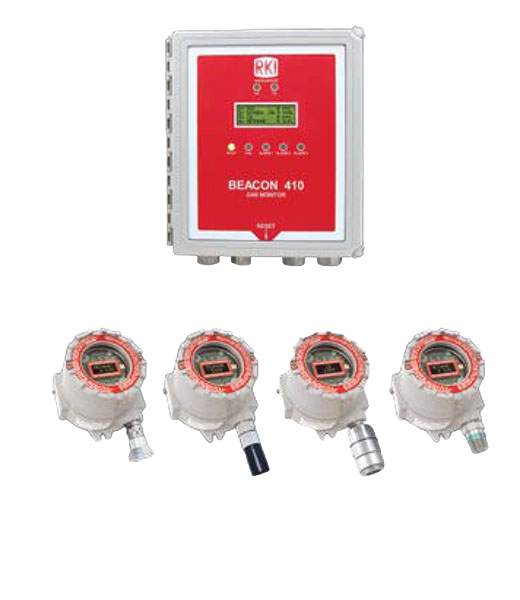

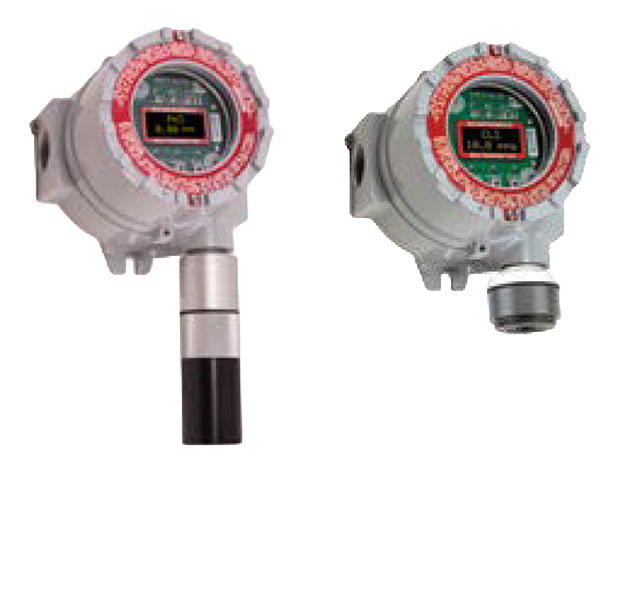

The RKI M2ATM is a state-of-the-art transmitter that can operate as an independent, stand-alone monitor or as part of an integrated system. The M2A connects with an analog or digital signal to virtually any controller, PLC, or DCS. Setup procedures are simplified with user friendly push buttons and OLED menus. It utilizes a magnetic wand technique for performing non-intrusive calibration. The M2A provides an automatic zero drift correction feature, which results in more stable readings and reduces the need for adjustments due to sensor aging.
Unit of Measure

Brands

 N/A RKI INFRASTRUCTURE

Gases

 N/A Ammonia (NH3) Arsine (AsH3) Carbon Dioxide CO(2) Carbon Monoxide (CO) Chlorine (Cl2) Chlorine Dioxide (ClO2) Combustibles H2 Specific Hydro Carbon(HC) Hydrogen Cyanide (HCN) Hydrogen Sulfide (H2S) Methane CH4 Oxygen (O2) Phosphine (PH3) Sulfur Dioxide (SO2)

Available Accessories

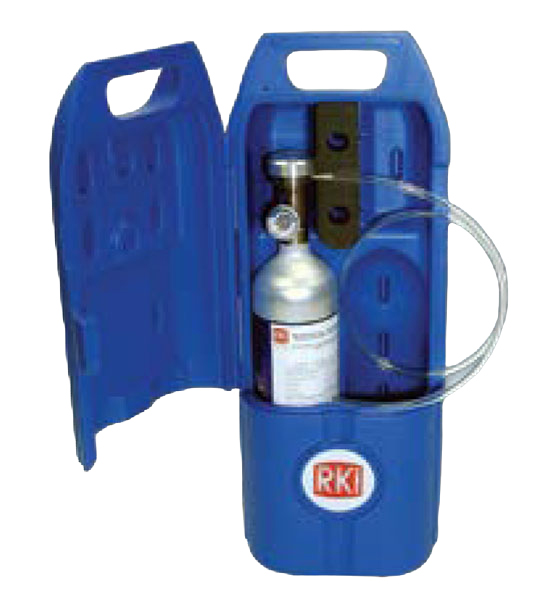

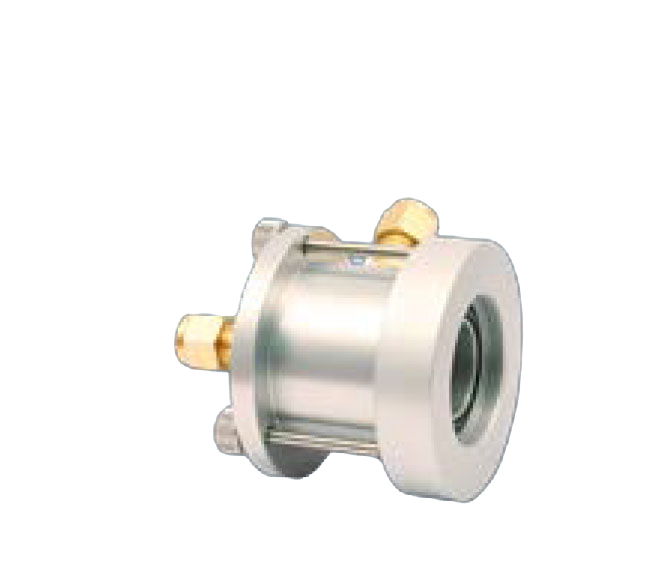

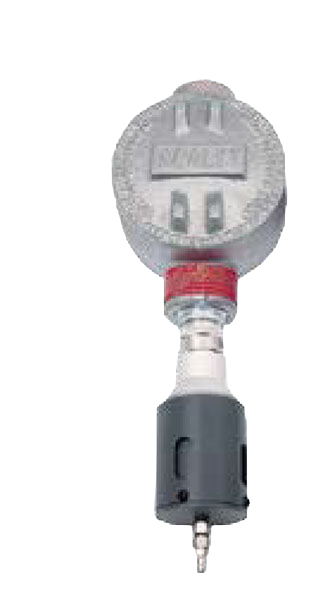

 N/A Air Aspirator Adapters / Panels Calibration Adapters Calibration Kits Flow Through Adapters Remote Horns and Lights Remote Mount Calibration Adapters

Number of Wires to Controller

 N/A 3

Maximum Distance to Controller at 18 American Wire Gauge (AWG) Wire

 N/A 2500 ft

Maximum Distance to Controller at 16 American Wire Gauge (AWG) Wire

 N/A 5000 ft

Maximum Distance to Controller at 14 American Wire Gauge (AWG) Wire

 N/A 8000 ft

Package Type

 N/A Each

Units Per Package

 N/A 1

N/A

  • Petrochemical plants
  • Refineries
  • Water & wastewater treatment plants
  • Pulp & paper mills
  • Manufacturing facilities
  • Automotive
  • Semiconductor plants
  • Chemical plants

N/A

  • Operates with or without a controller
  • Direct digital readout with OLED cold temperature display
  • Available gases include
    • LEL, O2, H2S, CO, CO2, and 100% Vol CH4
    • Toxic gases include NH3, AsH3, Cl2, ClO2, HCN, & SO2
  • Infrared sensor for combustibles and CO2
  • 4-20 mA & digital Modbus outputs standard
  • 2 fully programmable alarm relays & fail relay
  • Non-intrusive calibration via magnetic wand
  • Explosion proof construction
  • Patented water repellent sensor cover
  • User friendly setup, push buttons & OLED menus
  • Long-life sensors (2 + years typical)

N/A The housing of the M2A does not need to be opened for zeroing or calibration, making it unnecessary to declassify the area for routine maintenance. It is designed so that a complete field calibration can be performed by one person. Sensor construction is rated Class I, Div. 1 Groups B, C, D for flammables, CO, H2S, O2, and CO2, and Class I, Div. 2 for all other toxics.

The transmitter provides a 4-20 mA output in addition to a Modbus digital output. It also has two levels of alarms with relays, plus a fail alarm with relay. A digital display of the gas concentration, as well as alarm and status lights, can be viewed through the front window.

The toxic sensors are electrochemical type plug-in sensors, which provide high specificity, fast response, and long life. The plug-in design allows quick replacement in the field with no tools required. Toxic sensors are designed for use in Class I, Div. 2 hazardous locations. Sensors available for NH3, AsH3, Cl2, ClO2, HCN, PH3, and SO2.

The M2A represents the latest leading edge technology in sensor / transmitters today.

N/A World Leader In Gas Detection & Sensor Technology.

Made in the USA.
